Direct visual inspection

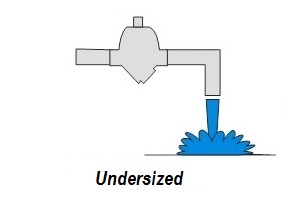

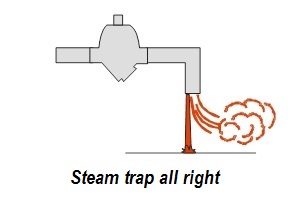

Useful for atmospheric discharge points. It requires experience to distinguish live steam from flash steam.
← Back to Services
Technical Service
Steam Trap and Trap Station Inspection
Technical diagnostics to detect live steam leaks, blockages, efficiency losses, and operational issues in trap stations.
HIGHER RELIABILITY
LOWER STEAM LOSSES
LOWER CO2 EMISSIONS
Study Objective
Control failures that impact safety, energy, and production

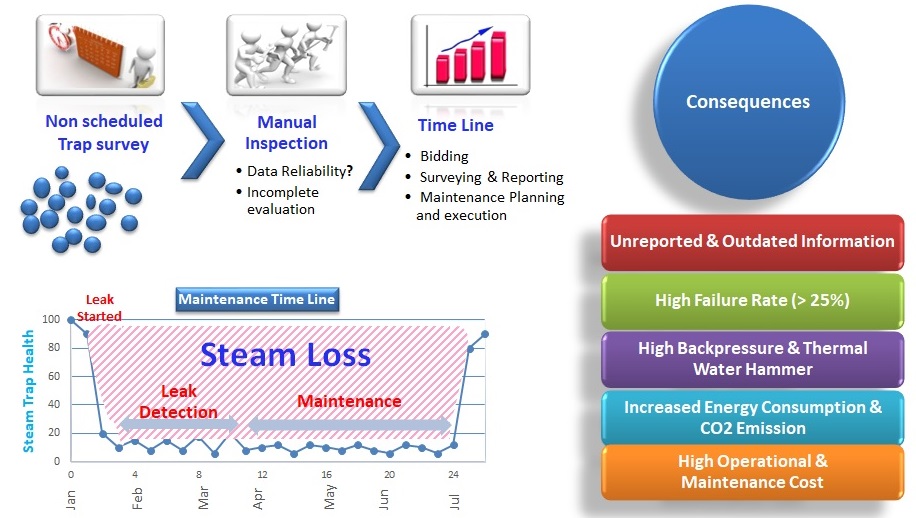

The goal is to identify steam leaks, low energy efficiency, flooding, obstructions, high backpressure, inadequate discharge temperatures, water hammer, and design or sizing issues. In industrial operation, over 20% of steam traps may leak live steam without an effective inspection and maintenance program.
A technical predictive, preventive, and corrective inspection plan significantly reduces these issues and improves the overall efficiency of the steam and condensate network.
Recommended Frequency
Indicative relation between frequency and failure rate
Reference values for trap stations based on inspection and maintenance periodicity.
| Inspection frequency | Failure rate (%) |
|---|---|
| 24 months | 30 |
| 18 months | 25 |
| 12 months | 15 |
| 6 months | 7 |
| 3 months | 5 |
| 1 month | 3 |
| Continuous monitoring | <0.2 |
Inspection Methods
Combined diagnostics for higher reliability
Verification should assess condition, suitability, and efficiency of all station components (trap, isolation valves, bypass, and return line). In practice, the best results come from combining methods.
Visual inspection with sight glass

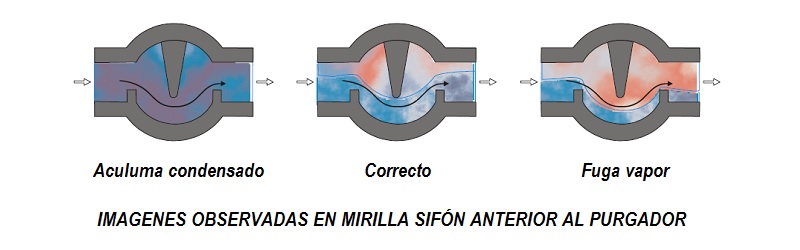

A siphonic sight glass installed upstream helps distinguish condensate from live steam more clearly.
Ultrasonic inspection
Fast and reliable method for internal steam/gas leaks. It requires proper sensitivity setup and technical criteria.
Time and temperature measurement
Support method for cyclic traps. It should be combined with other methods to avoid diagnostic errors.
Practical Limitations
Critical points to avoid diagnostic errors
Direct visual

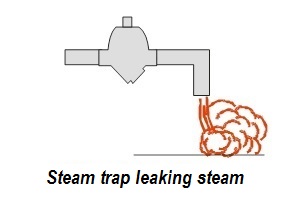

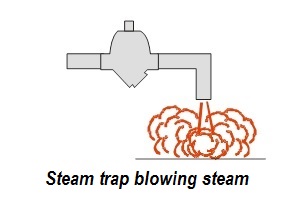

In atmospheric discharge, flash steam may be confused with real leaks. Diagnosis must consider pressure and condensate load.
Downstream test valve
On cyclic/continuous discharge traps, changing backpressure during testing can alter real trap behavior.
Sight glasses
Limited to low-pressure applications. Glass fouling from oxides reduces visibility and increases maintenance cost.
Temperature only
Without trap type, service data, and differential pressure, temperature alone may lead to incorrect conclusions.
Ultrasonics
Field-use recommendations
Set sensitivity
Adjust scale according to steam pressure and trap type.
Measure at the trap
Apply contact probe firmly and record baseline reading.
Cross-check downstream
Take readings 1-2 m downstream to distinguish live steam leaks from flash steam.
Validate low dP cases
With dP < 1 bar reliability drops; use combined methods and expert criteria.
Highest reliability
SmartWatchWeb™ remote monitoring
The most robust method because it tracks ultrasonic, temperature, and backpressure trends over time. Unlike spot inspection, trending enables early anomaly detection before failure.
Continuous diagnosticsHistorical tracking and deviation alerts.
Trend analysisEarly degradation identification.
Fewer false positivesCross-parameter contextual validation.
Better planningIntervene where economic impact is highest.
Service Deliverables
- Audited inventory of trap stations.
- Per-asset diagnosis and criticality rating.
- Leak quantification and savings potential.
- Prioritized, traceable action plan.
